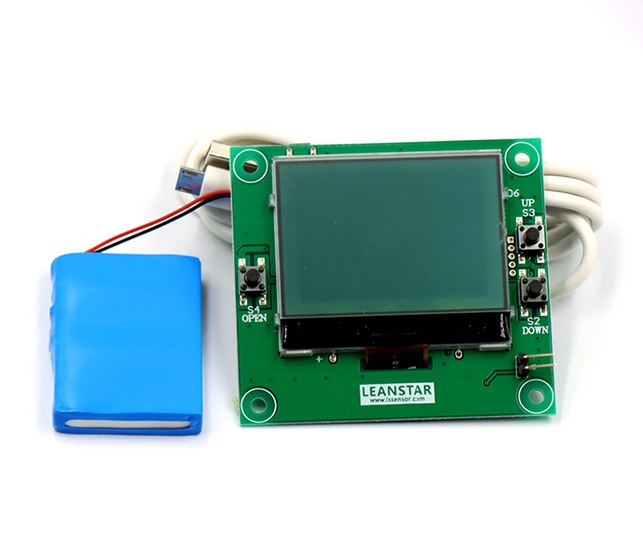

The MY2801 is a pressure measurement module independently developed by Suzhou Leanstar Electronics, designed for use with the company’s flexible film pressure sensors to measure and display surface pressure in real time.
It integrates signal processing, control, storage, display, and communication functions, enabling real-time monitoring, data storage, and transmission. The module also supports sensor calibration for compatibility with various sensor models from Leanstar.
2.5" high-resolution display
Compatible with Leanstar's single-point flexible pressure sensors
Built-in calibration function for enhanced accuracy

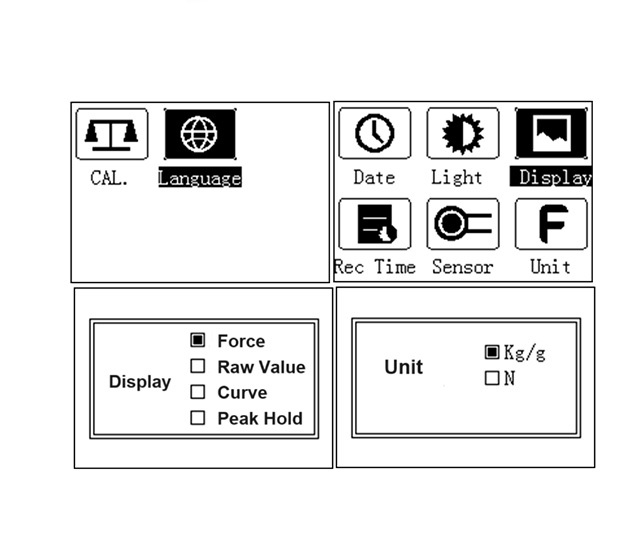

Multiple display modes: real-time pressure, AD value, and pressure curve
Switchable pressure units (Kg/g, N)
Multi-language support: Simplified Chinese & English
Peak Hold function for maximum pressure capture
Real-time clock displaying current time
Onboard memory stores up to 2000 records
Integrated communication interface for data access and parameter configuration
Low power consumption with rechargeable lithium battery for extended operation
| Screen | 28,000-pixel Monochrome Dot Matrix Display |
| Power Supply | 3.7V 1200mAh |
| Interface connection | Micro USB, DC 5V |
| Power consumption | 30mA |
| Communication Interface: | Data communication with PC via Micro USB port |
Consumer Electronics
Auxiliary testing tool for product development phase
Educational Use: Pressure visualization
Pressure / Force Monitoring during device operation
