1. Product Overview
The robotic dexterous hand has a wide range of applications across various fields, including industry, healthcare, service robotics, agriculture, and space exploration. Currently, the tactile perception of robotic hands mainly relies on the integration of multiple types of sensors within the hand system to simulate the tactile sensing ability of human fingers. Among these, pressure tactile sensing is used to detect the pressure distribution when the fingers contact an object, enabling the robot to determine the object’s shape and hardness.
The FPT100 Pressure Tactile Detection Solution is a system based on flexible pressure sensors, consisting of three main components:
The flexible pressure sensors can be attached to the robot fingers. A layer of soft silicone or rubber pad can be applied on top of the sensor to protect the thin-film sensing layer. The sensor signals are transmitted through an FPC cable to the acquisition module, which converts the sensor’s resistance variation caused by applied pressure into pressure data.
The acquisition module outputs the data via serial communication to a PC, where the dedicated pressure UI software visually displays the pressure distribution across the finger contact area in real time.
2. Product Appearance

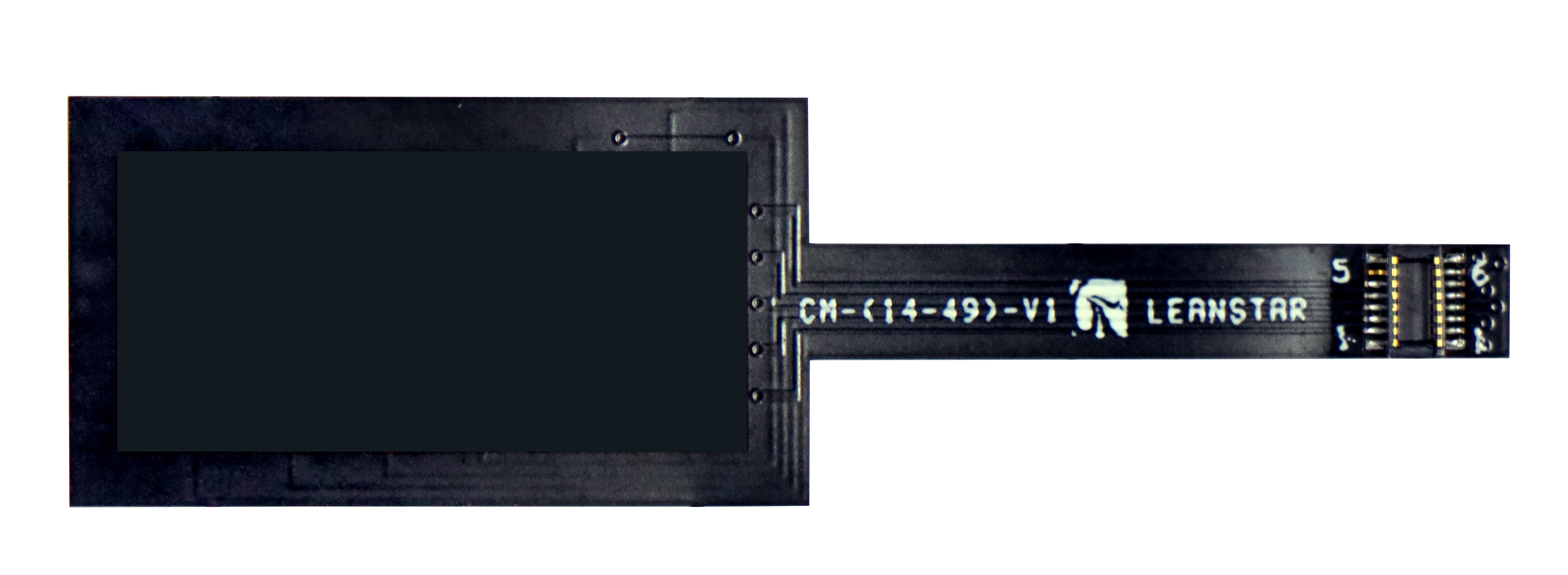

【Flexible Pressure Sensor MF0506】 【FPT100 TOP View】

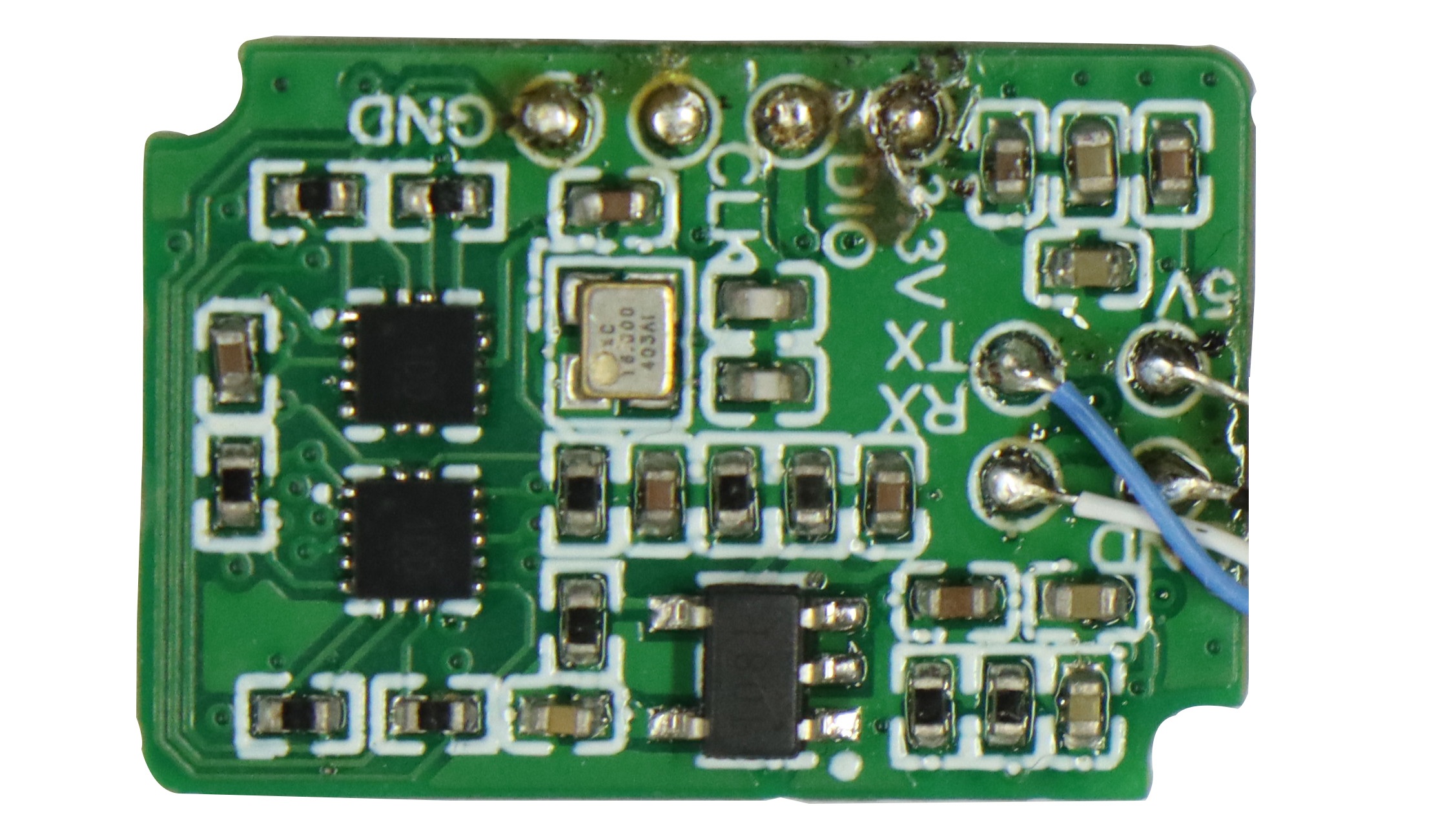

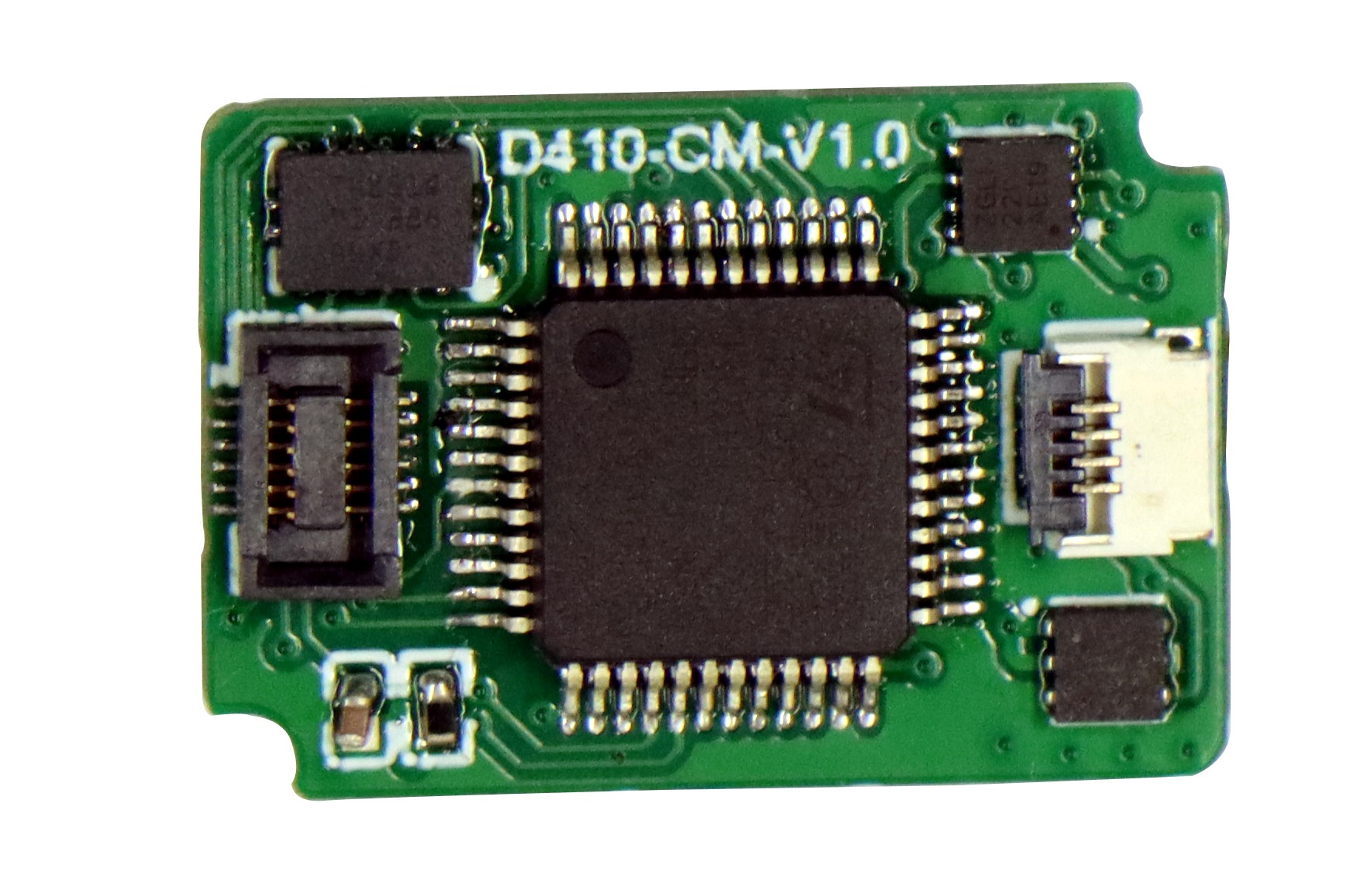

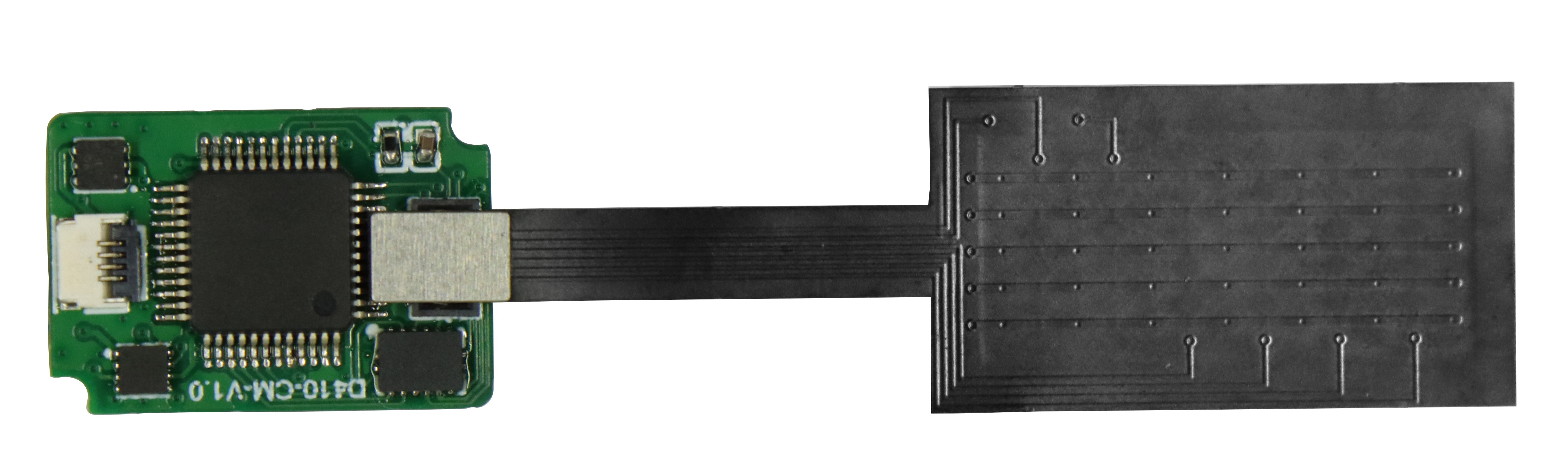

【FPT100 Bottom View】 【Connection between Sensor and Acquisition Module】
3. Product Specifications and Interface Definition
3.1 Sensor Specifications
| Parameter | Specification | Description |
| Model | MF0506 | — |
| Thickness | ≤ 0.35 mm | Pressure sensing area ≤ 0.25 mm |
| Effective Sensing Area | 10 mm × 21.2 mm | — |
| Connector Type | BTB Female Connector, 12 PIN, Pitch = 0.4 mm | — |
| Number of Rows | 5 | — |
| Number of Columns | 6 | — |
| Total Sensing Points | 30 | — |
| Pressure Sensing Point Density | 14.15 sensel/cm² | — |
| Actuation Force | ≤ 10 g | — |
| Pressure Range | 20 kg | Maximum value, can be customized according to application scenarios |
| Operating Environment | –20°C to +60°C, 0–90%RH | — |
3.2 Data Acquisition Module Specifications
| Parameter | Specification | Description |
| Model | FPT100 | — |
| Dimensions | 13mmx19mmx3.8mm | — |
| Power supply voltage | 5V | Can be powered via the FPC-to –serial adapter board using 5V from the serial port. |
| Power Consumption | 0.25W | |
| Sampling Rate | 1KHz | Max |
| Communication interface | FPC connector, 4-pin, pitch 0.5 mm | Can be connected to a serial port and PC via an adapter board. |
| Operating Environment | –20°C to +60°C, 0–90% RH | — |
3.3 Collector FPC Interface Definition
| Pin Number | Pin Definition |
| 1 | 5V Input – Power Pin |
| 2 | UART_TX |
| 3 | UART_RX |
| 4 | GND |
4. Product Dimensions

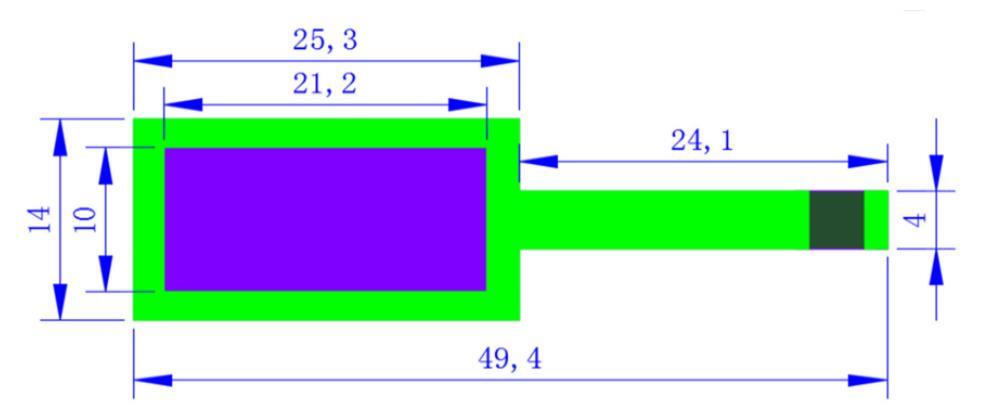

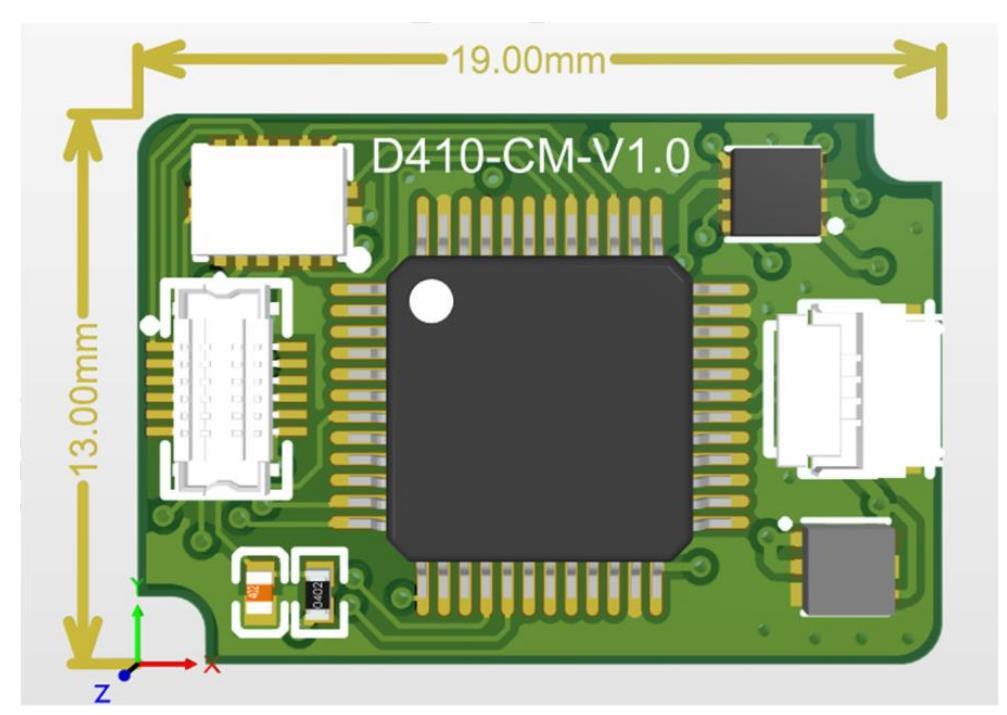

【Sensor Dimensions: mm】 【Data collector Dimensions】
5. Product Instructions
5.1 Quick Start Guide
Users can directly use the complete testing system, i.e., sensor + collector + PC. The specific usage steps are as follows:

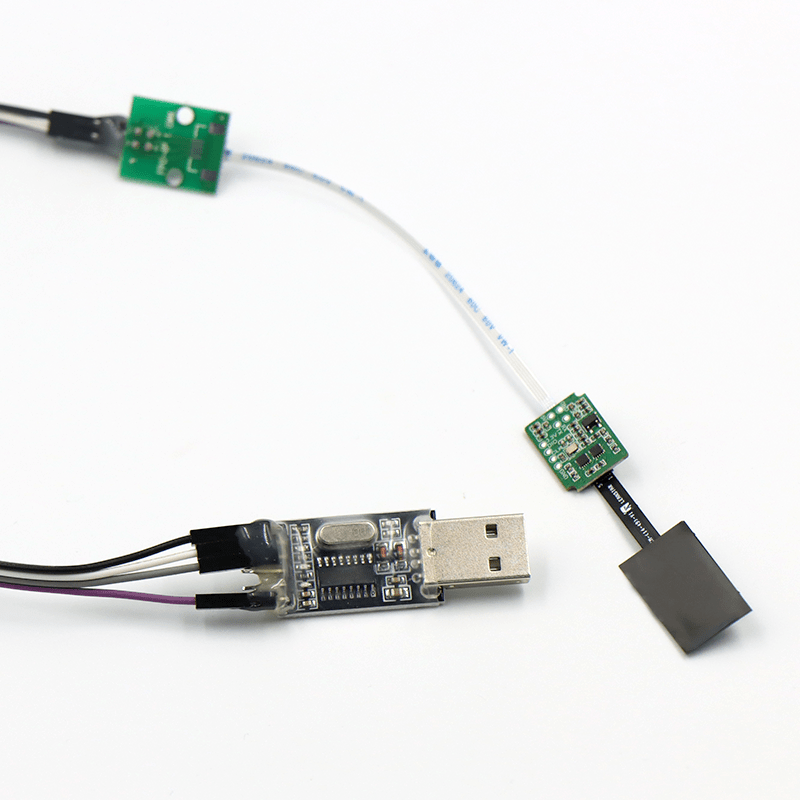

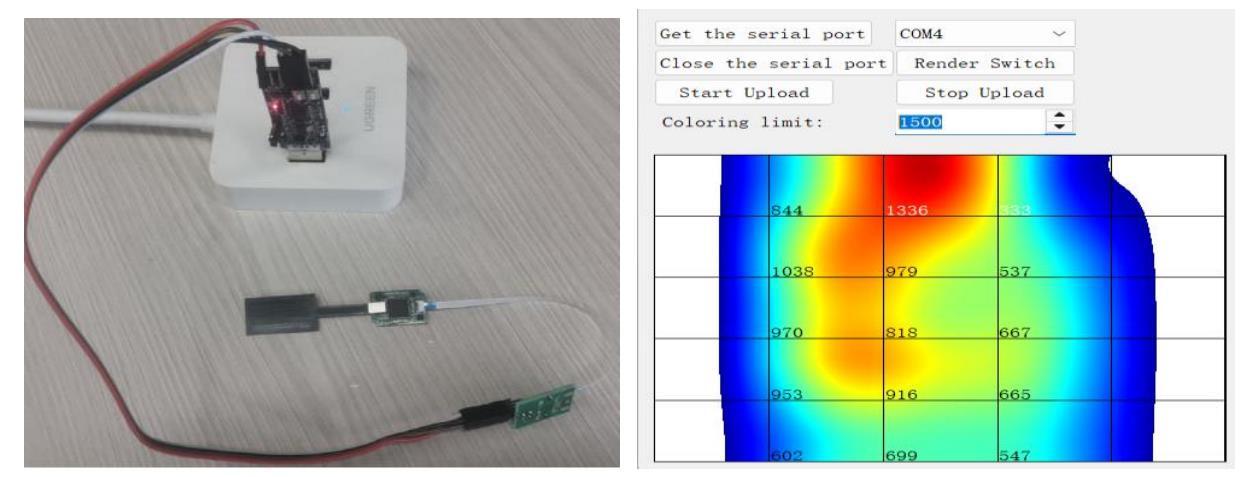

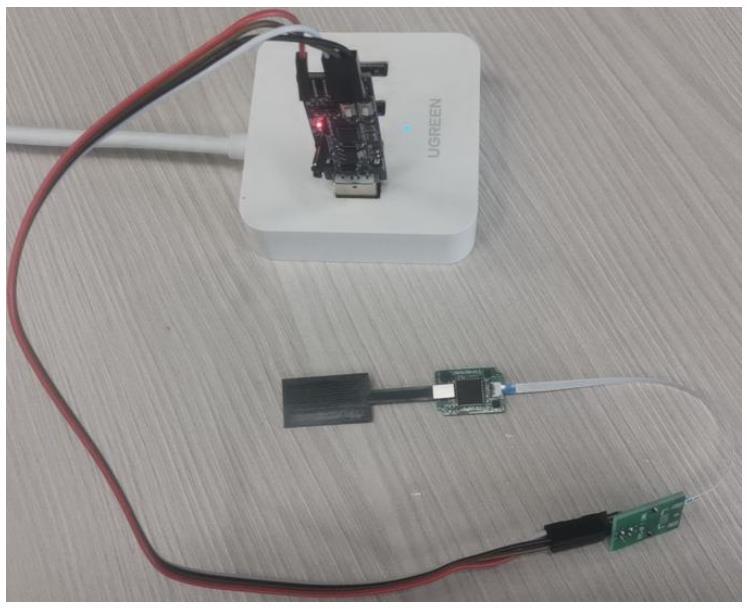

【Photo of the completed hardware connection】

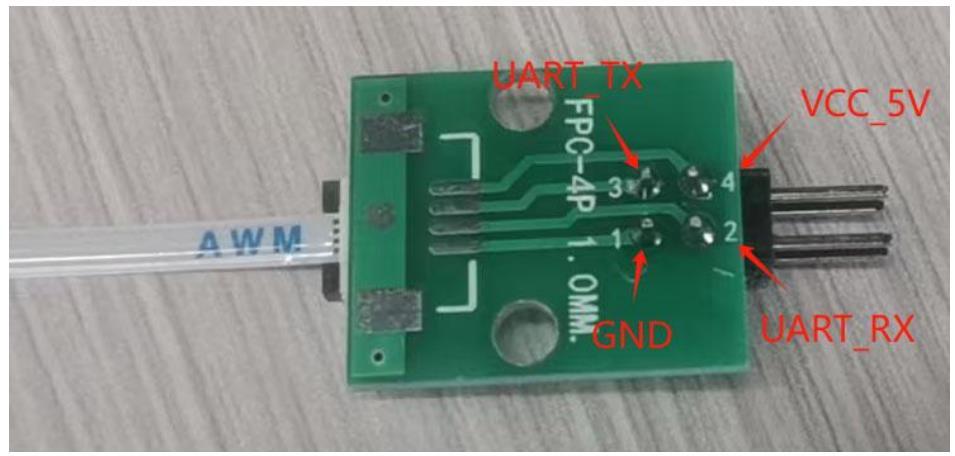

【Adapter board and corresponding collector pin definitions】
5.2 Others
For information on the collector’s serial communication protocol, please contact our staff to request the relevant materials.
