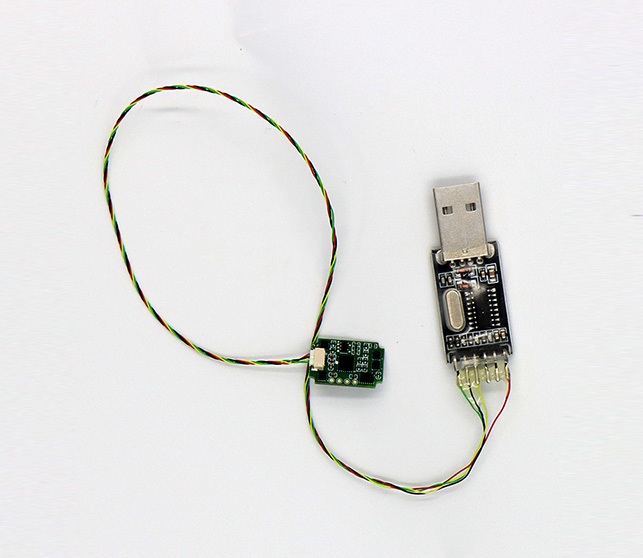

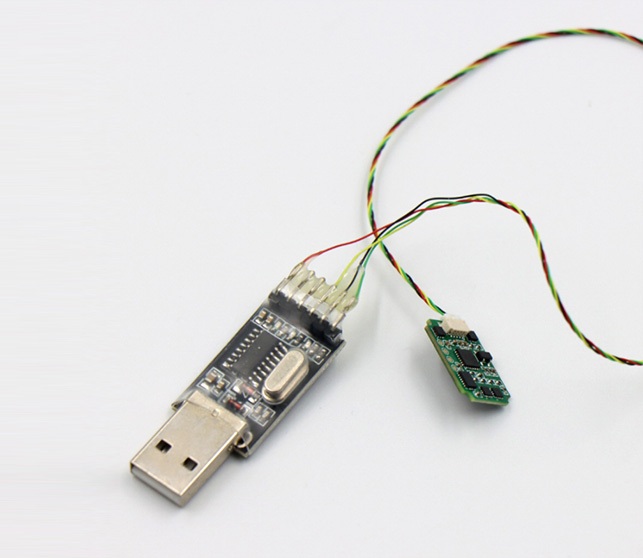

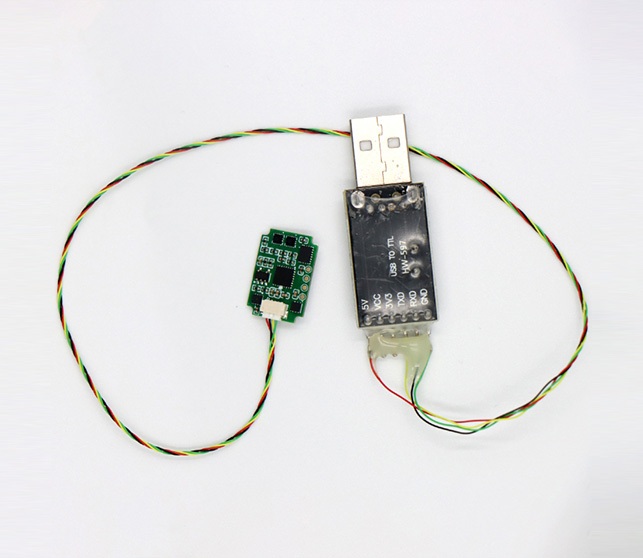

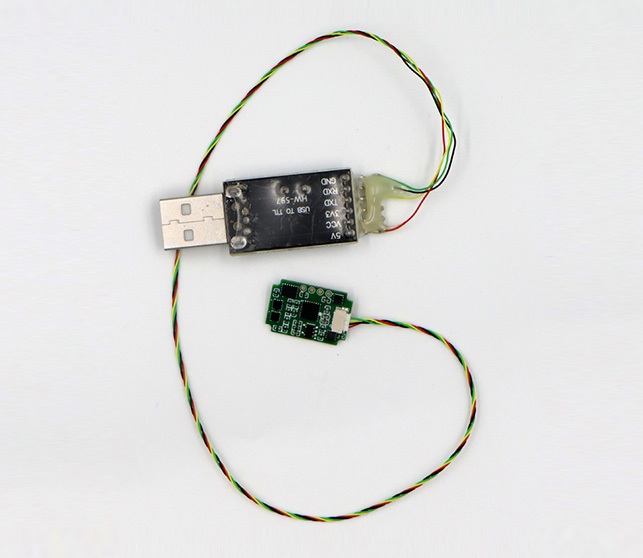

FPT (Flexible Pressure & Tactile) Sensing Solution utilizes cutting-edge flexible sensor technology to detect pressure distribution and tactile feedback with high precision. This solution integrates high-sensitivity pressure sensors, real-time data processing, and AI-driven analysis, making it ideal for various smart applications.
Highly Flexible & Thin Design: Easily adaptable to different surfaces and form factors.
High Sensitivity & Accuracy: Detects subtle pressure variations for precise measurement.
Multi-Point Sensing Capability: Provides detailed pressure mapping and real-time data analysis.
Durable & Low Power Consumption: Long-lasting performance with minimal energy use.
Customizable Solutions: Tailored to specific application requirements and industry needs
|
Parameter |
Specification |
|
Model |
FPT200 |
|
Sensing area |
9.5*9.5mm |
|
Colums |
5 |
|
Rows |
5 |
|
Sensels |
25 |
|
Density |
17.54 Sensel/cm2 |
|
Actuation Force |
≤20g |
|
Force Range |
500g~50Kg |
|
Power Supply |
5V |
|
Power consumption |
0.12W |
|
Scanning rate |
1KHz |
|
Interface connection |
FPC，4PIN，P=0.5mm |
