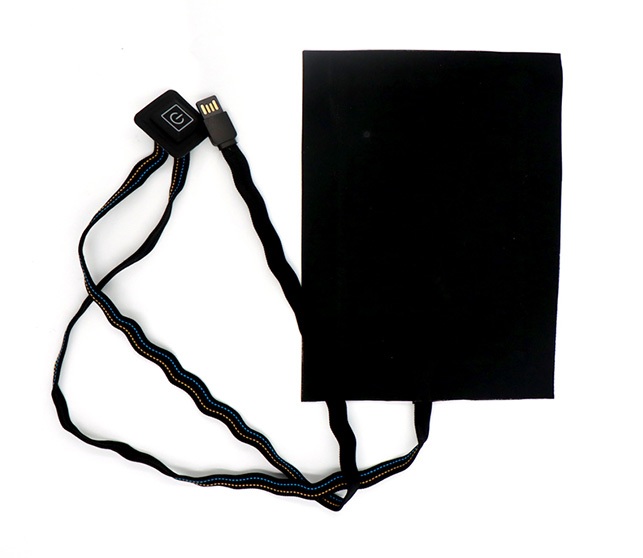

The GWARM-S2015 far-infrared graphene heating fabric is an advanced flexible heating element independently developed by Suzhou Leanstar Electronics Technology Co., Ltd. It utilizes highly conductive graphene-based composite heating materials, combined with a flexible substrate through precision manufacturing processes, resulting in a soft and high-performance conductive fabric. The product achieves an electrothermal conversion efficiency of over 99%.
It is widely used in clothing, gloves, footwear, home furnishings, outdoor gear, and small appliances.
The system consists of two main components: the heating element and the control unit, ensuring high efficiency, safety, and reliability.
|

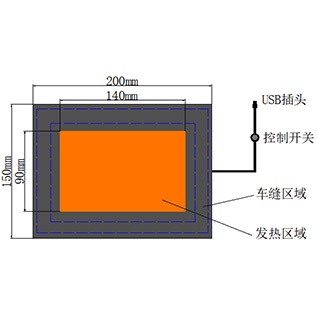

Parameter |
Specification |
|
Overall Length |
200mm |
|
Overall Width |
150mm |
|
Thickness |
0.3mm |
|
Heating area |
140*90mm |
|
Control Switch Cable Length |
Both cable ends are 50 cm in length (cable length and temperature control features are customizable). |
|
Operating Voltage |
DC 5V |
|
Power Apply |
Power bank |
|
Heating Temperature |
35~55℃ |
Rapid heating, instant warm-up
High electrothermal conversion efficiency (>99%)
Ultra-thin design, only 350 μm thickness
Ultra-soft and seamlessly integrated with fabric for maximum comfort
Uniform planar heating with even heat distribution
Safe and comfortable far-infrared radiant heating
Long service life exceeding 10,000 hours

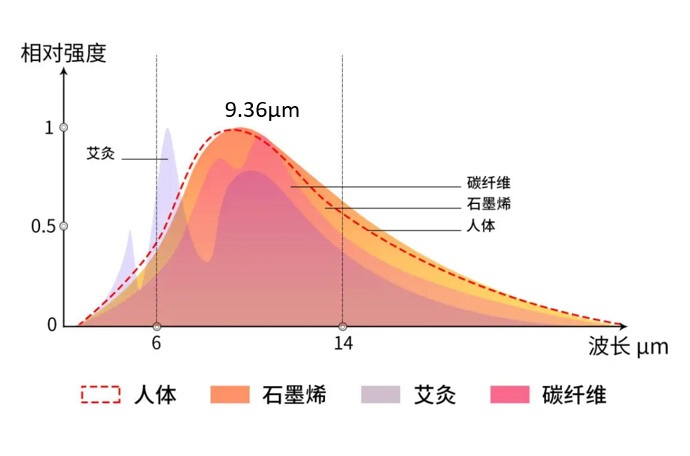

Far-Infrared Wavelength Characteristics
The far-infrared wavelength emitted by graphene closely matches the natural far-infrared emission of the human body, both falling within the 6–14 μm range. The peak wavelength at 9 μm most effectively resonates with the human body, promoting deep, penetrating warmth without causing overheating, dryness, or discomfort.
Heat therapy pillow
Heating Clothing

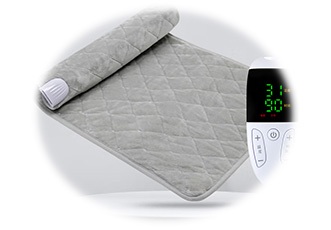

Heating blankets and pads

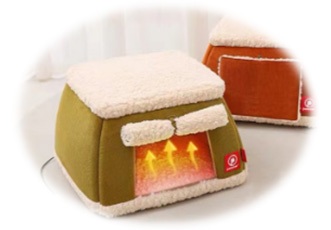

Heating pet bed pad
