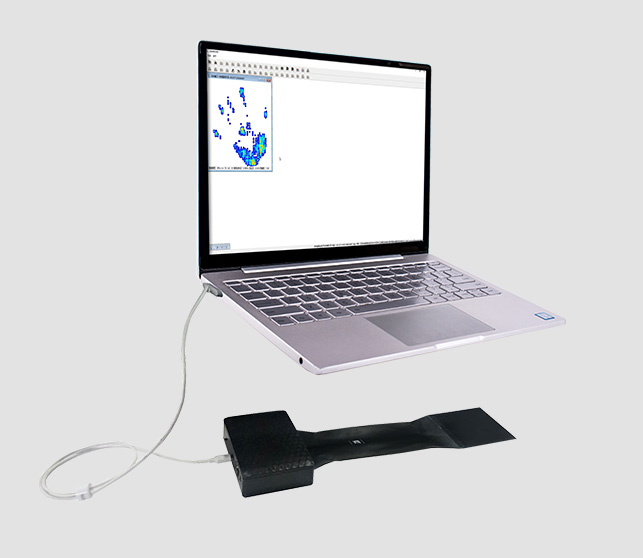

The LeanScan MF8080 Series is a comprehensive pressure mapping system composed of three key components: the MF8080 flexible pressure sensor array, a signal acquisition module, and dedicated PC-based analysis software. The sensor outputs resistance signals that vary with applied pressure, which are then filtered, amplified, and conditioned by the acquisition module before being converted into digital signals. These signals are transmitted via USB to a PC for real-time visualization, analysis, and storage.
LeanScan offers a more complete and accurate analysis than conventional pressure sensing solutions, with multiple display modes for visualizing pressure distribution. The software provides real-time pressure mapping, data recording and playback, as well as statistical and multi-channel joint analysis features.

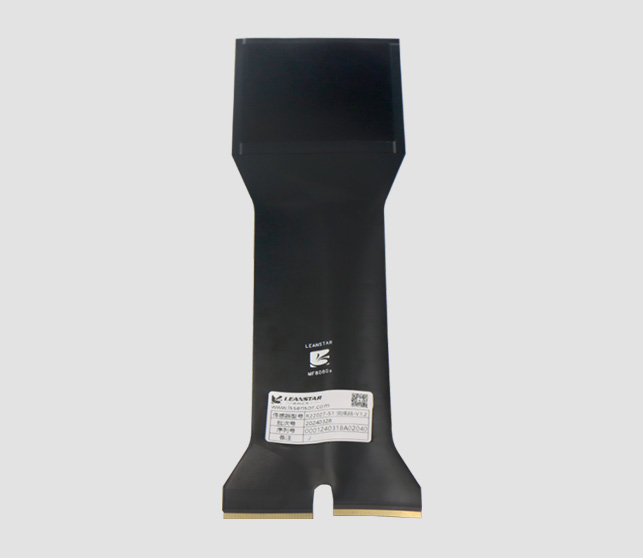

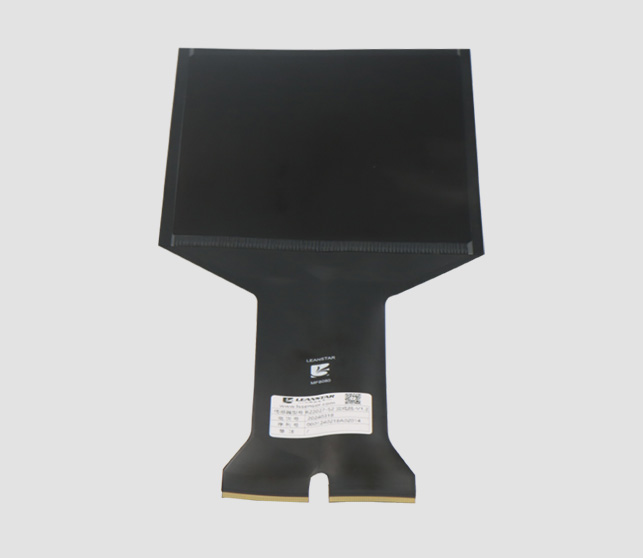

The MF8080 sensor series includes models such as MF8080L and MF8080S, allowing flexible configuration based on user needs.

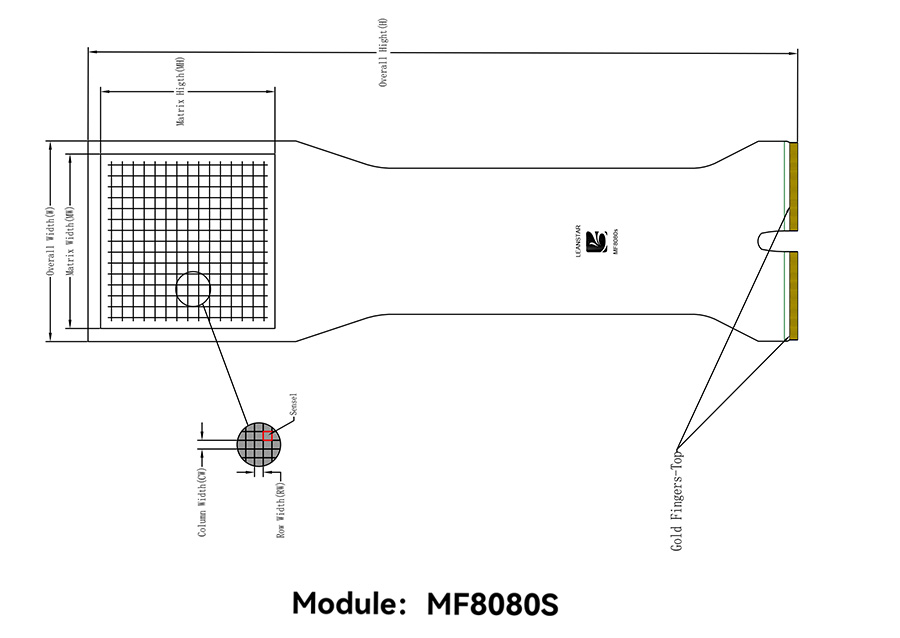

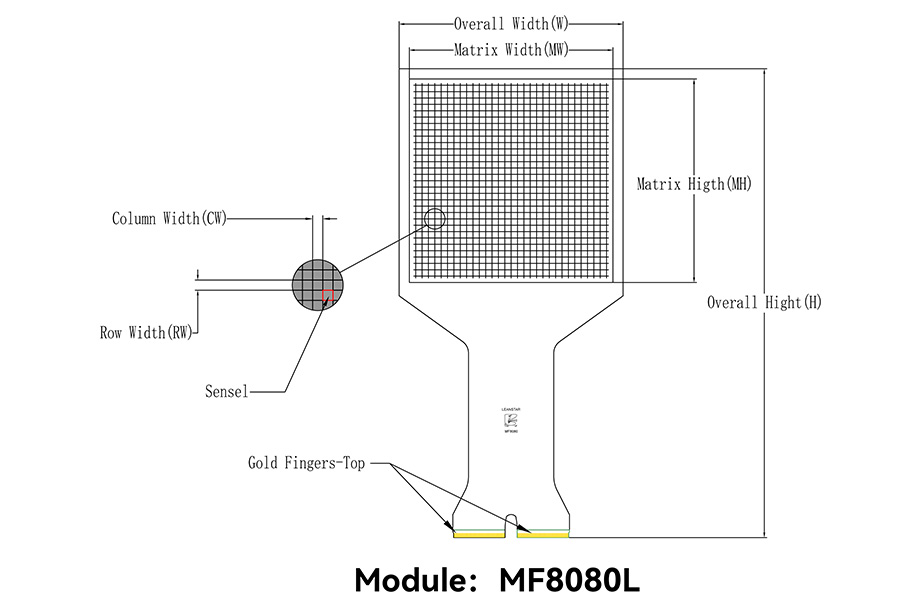

| Parameter | Size | |
| MF8080L | MF8080S | |
| Overall Hight | 368.5 | 325.5 |
| Overall Width | 176 | 92 |
| Matrix Hight | 160 | 80 |
| Matrix Width | 160 | 80 |
| Colum Width | 2 | 1 |
| Row Width | 2 | 1 |
| Sensels | 6400 | |
| Force Range | 7Mpa | |
Thin-film construction with ultra-slim profile (<0.3 mm)
Low power consumption and high stability
Fast response and long service life
Powerful pressure analysis system compatibility
Simple detection scheme, easy to integrate
Supports customized sensor development
| Model | LeanScan MF8080 |
| Scanning Speed | 80Hz |
| Scan Points | 6400 Sensels |
| Interface Type | USB2.0，type-C |
| Power Supply | 0.45A，USB Direct power supply |
| Pressure Resolution | 15bit |

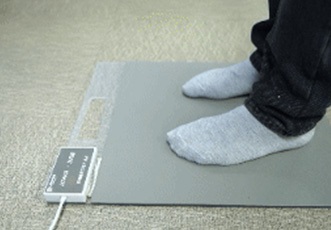

Medical devices：Gait Pressure Monitoring

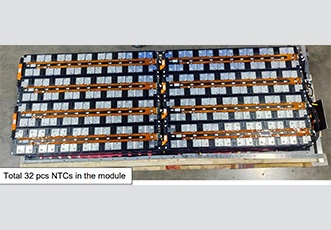

Battery pressure monitoring

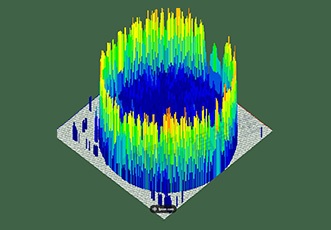

Industrial Equipment Flatness & Pressure Monitoring
Aerospace Industry
