With the rise of smart home appliances, users increasingly expect more convenient and intelligent interaction experiences. The press-to-open electric refrigerator door has become a popular design trend in high-end refrigerators. However, due to the vacuum effect from airtight sealing, the refrigerator door typically exhibits a preload force, making it difficult for traditional mechanical buttons or capacitive touch sensors to accurately recognize intentional pressing. This often leads to false triggering or unresponsive actions.
Suzhou Leanstar Electronics Technology Co., Ltd. offers a highly reliable smart press recognition solution based on independently developed flexible piezoresistive pressure sensor technology. This system accurately detects subtle pressure changes applied by the user, solving the limitations of traditional solutions such as inaccurate recognition, delayed response, and high false trigger rates.
Working Principle: The sensor is embedded under the door surface or handle. When pressed, the resistance of the internal conductive layer changes with pressure, enabling precise detection.
Adjustable Sensitivity: Pressure range customizable from 0.5–10kg to suit various interaction styles (light touch or firm press).
Environmental Adaptability: Operates stably in -20°C to 60°C; moisture- and dust-resistant, ideal for humid, low-temperature environments inside refrigerators.
Threshold-Based Triggering: A microcontroller (e.g., ESP32) continuously reads sensor data. If pressure exceeds the defined threshold and lasts for more than 1 second, an open-door command is issued.
Dual False-Trigger Protection:
Software Debounce: Filters out short-duration noise (e.g., bumps or accidental contact).
Infrared Sensor（Optional）: Only activates pressure detection when a user is detected nearby.
Electromagnetic Lock + Spring Assist:
Upon receiving the open signal, the electromagnetic lock releases instantly, and a built-in spring mechanism pushes the door open by 15°–30°.
Supports automatic reset and seamless compatibility with manual operation.
Accurate Press Recognition
Detects subtle pressure variations and supports multi-level control—for example, a light press opens the fridge compartment, a firm press opens the entire door.
Customizable via App
Users can personalize threshold pressure levels and press duration through a dedicated mobile app for a more tailored interaction experience.
Smart Learning & False Trigger Prevention
Built-in algorithms adapt to the user’s habitual press patterns, reducing accidental openings and enhancing security and reliability.
Ultra-Thin and Easy to Integrate
At only 0.2mm thickness, the sensor is easily embedded in various structural designs without affecting appearance or requiring major modifications.
User presses the door surface;
Flexible sensor captures pressure intensity and duration in real time;
The microcontroller analyzes the data to identify valid press gestures;
If matched, a control signal is sent to trigger the door opening;
The system records the action for ongoing algorithm optimization.

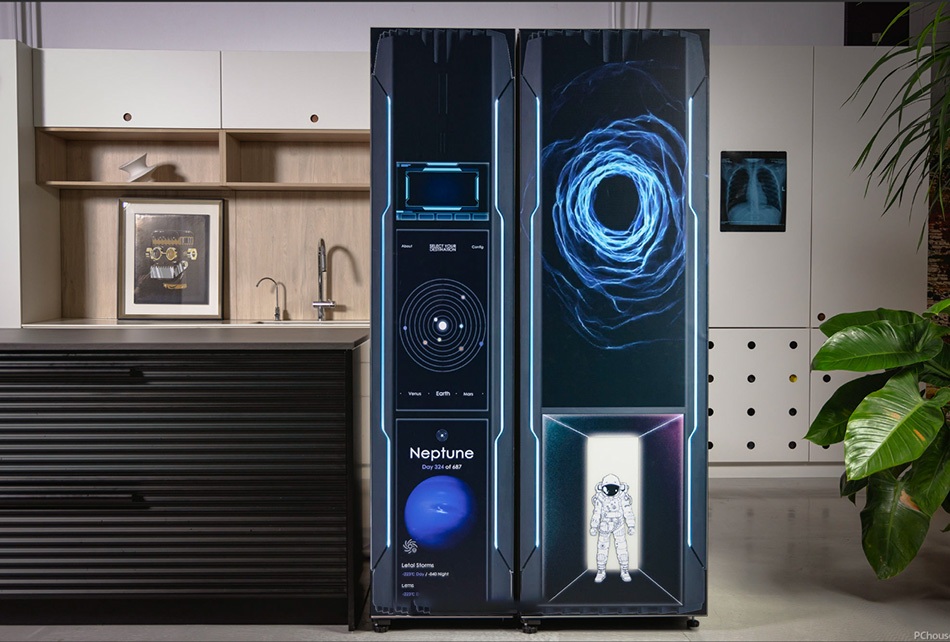

High-end minimalist refrigerators with handleless design
Smart commercial or hotel refrigerators
Elderly- and child-friendly home appliances
Suzhou Leanstar Electronics Technology Co., Ltd. has extensive experience in flexible electronics and pressure sensing technologies. We offer complete services from sensor design, customization, algorithm support, to mass production for a wide range of industries including home appliances, healthcare, smart home, and consumer electronics.
Proven and stable sensing technology
Fast OEM/ODM customization support
Scalable system integration compatible with various platforms
End-to-end technical and project support
If you’re looking for a smarter and more reliable solution for press-to-open refrigerator doors, contact us today. We are committed to delivering professional support and high-quality products to help you build the next generation of intelligent appliances.
