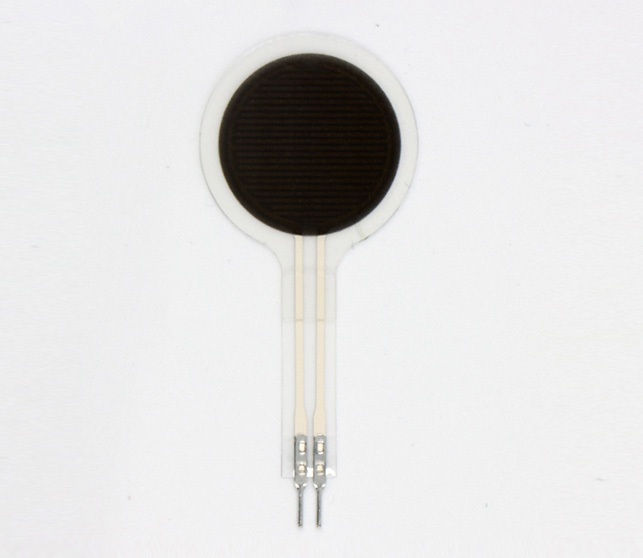

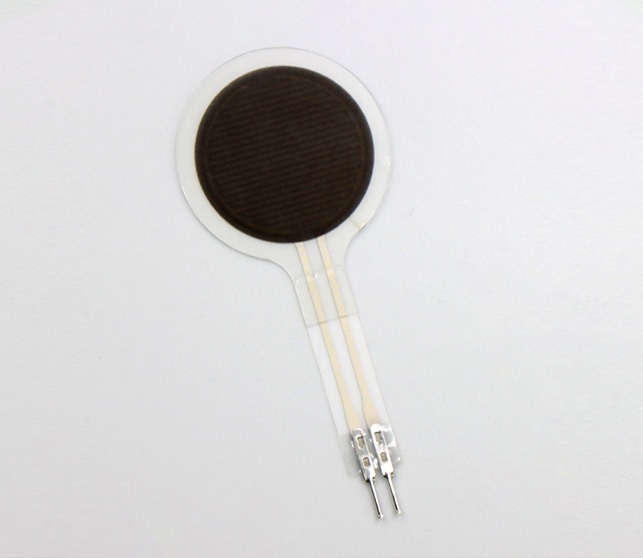

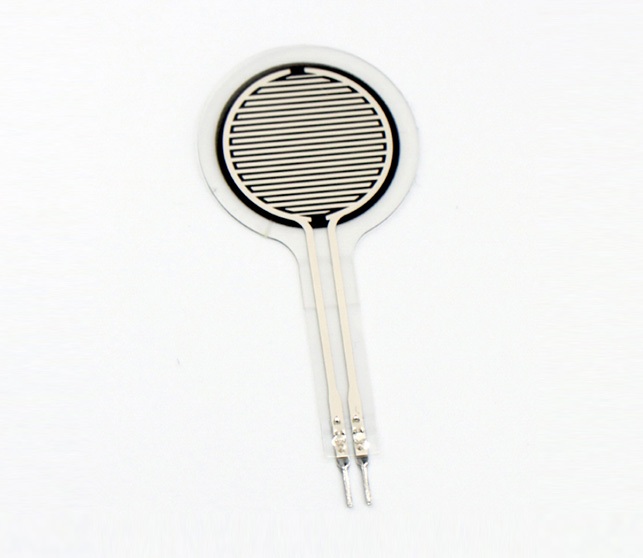

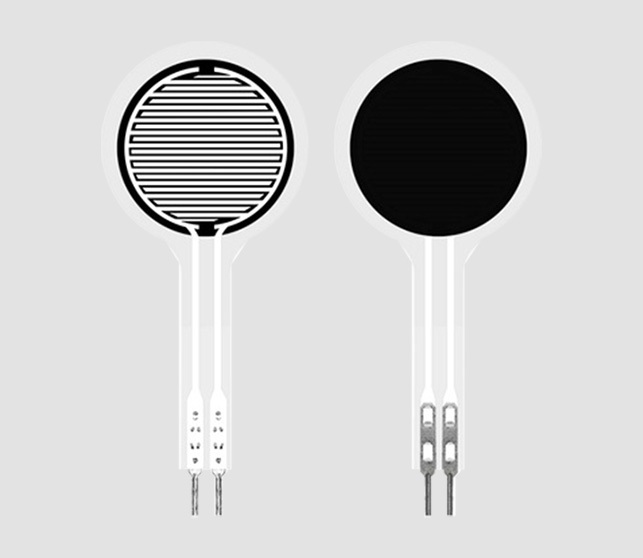

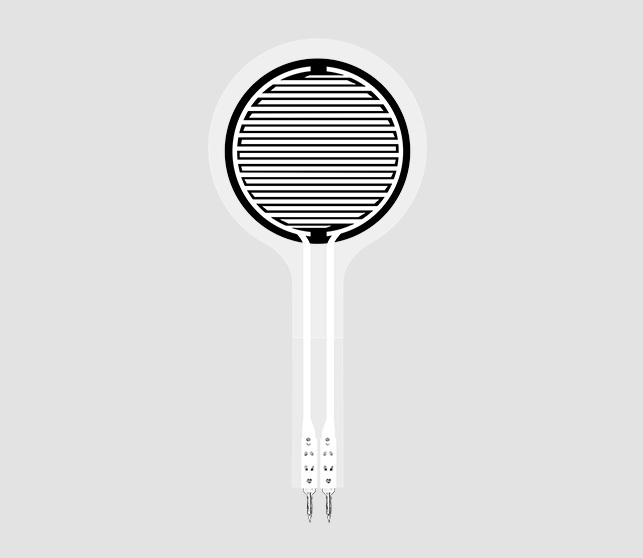

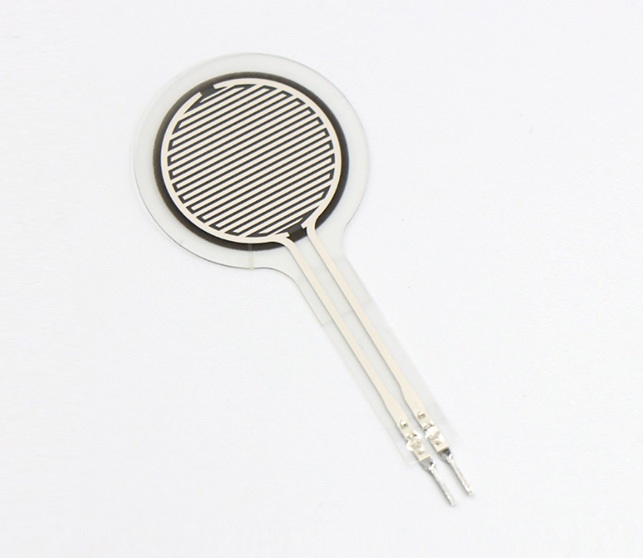

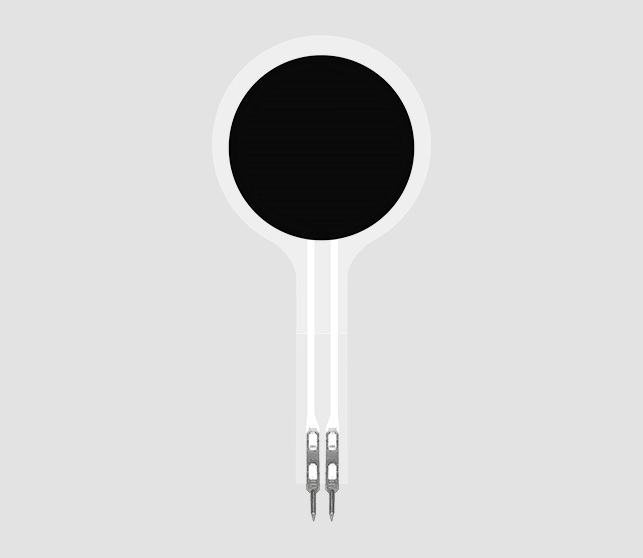

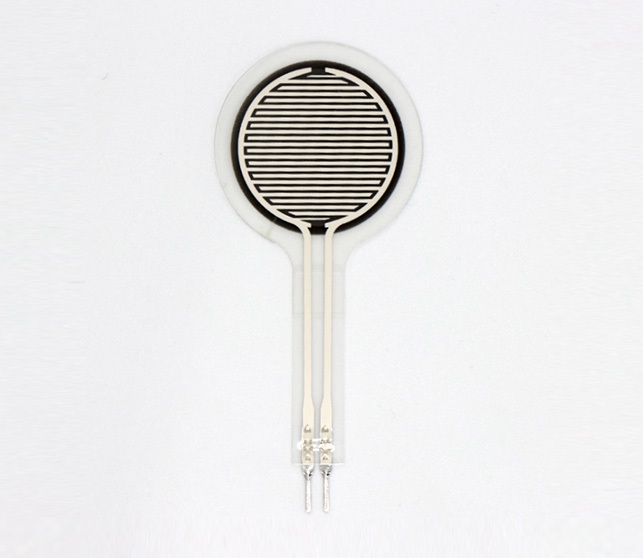

Flexible thin-film pressure sensors-MD30-60

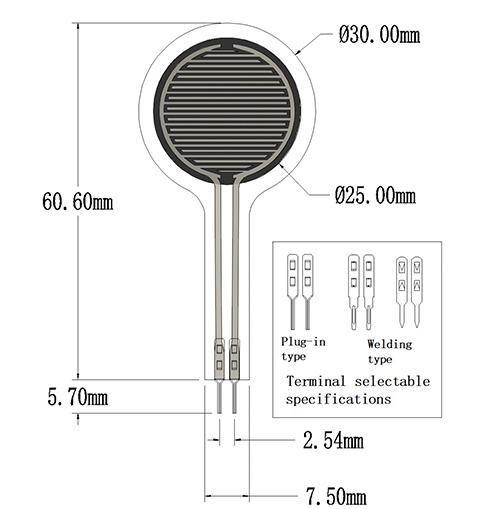

Mechanical data

Parameter	Specification	Tolerance
Total Length	66.3 mm	±0.2 mm
Total Width	30 mm	±0.2 mm
Active Sensing Area	Ø25 mm Circle	±0.2 mm
Pin Pitch	2.54 mm	-

Product Features

• Ultra-thin and flexible design (<0.6mm thickness)

• Low power consumption with long-term stability

• Fast response time for dynamic pressure detection

• High sensitivity over a wide pressure range

• Easy integration into various systems

• Customizable sizes, shapes, and specifications

Key Specifications

Application Circuit

•

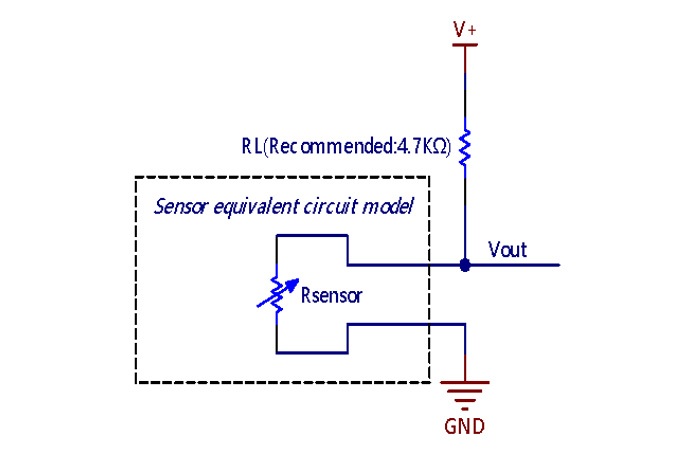

  Figure 1: Voltage Divider Measurement Method

•

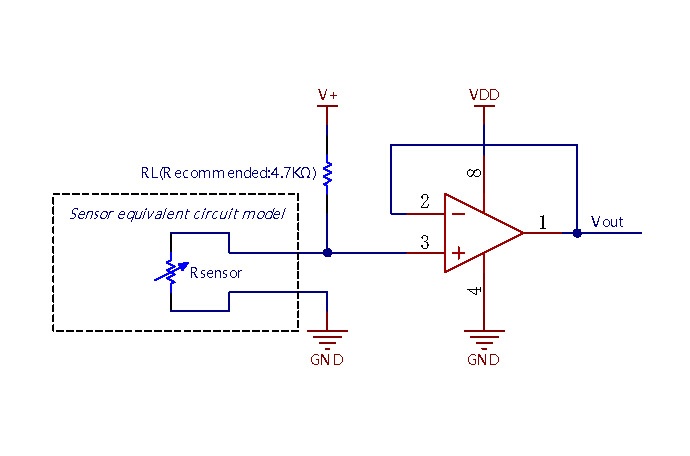

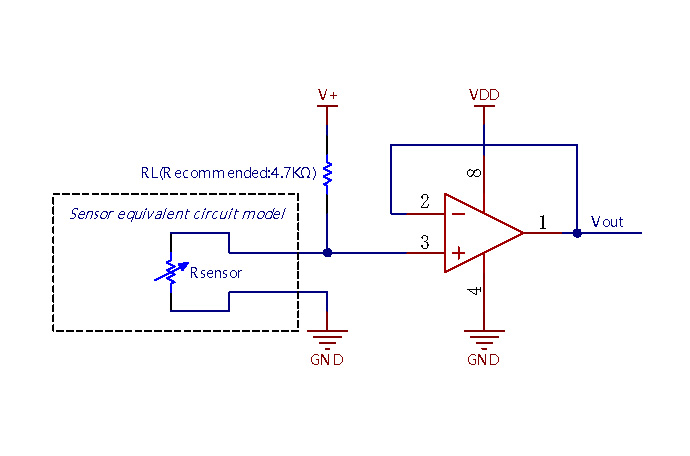

  Figure 2: Voltage Divider Measurement with Voltage Follower for Output Voltage Stability

• Calculation Formula



• Measurement Principle

  The pressure sensor is connected in series with the load resistor RLR_LRL​, with one end connected to V+V_+V+​ and the other to GND, forming a basic voltage divider circuit. The output voltage (VoutV_{out}Vout​) is taken from the voltage divider, and the sensor's resistance variation corresponding to pressure changes is converted into a voltage signal.

  This circuit operates on the principle of voltage division, where the sensor's resistance change directly causes a change in the output voltage.

• Application Notes

  Choose an appropriate load resistor RLR_LRL​ based on the specific application requirements. In most cases, a value of 4.7kΩ is recommended.

  The output voltage VoutV_{out}Vout​ can be connected to the ADC input of a microcontroller (MCU) for pressure detection.

  Alternatively, VoutV_{out}Vout​ can be connected to the external interrupt I/O pin of the MCU, enabling pressure-triggered functions.

Typical Applications

•

  Consumer Electronics

•

  Smart Home

•

  Automotive

•

  Medical Devices
