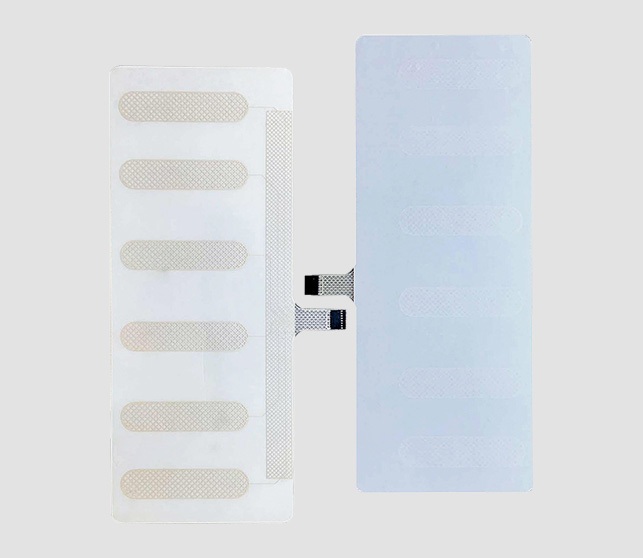

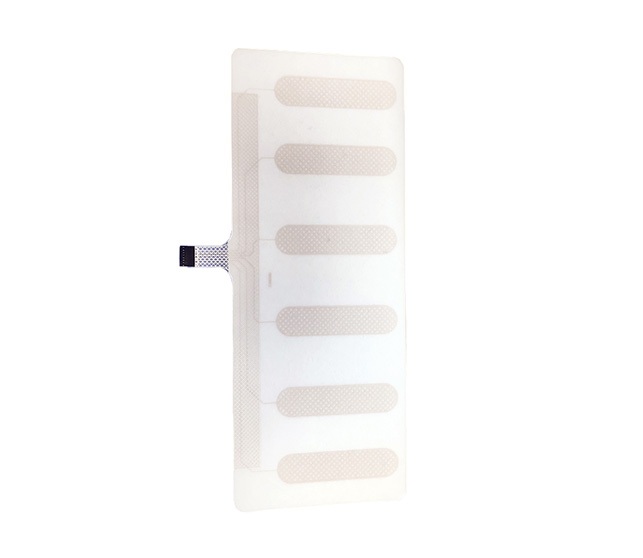

The FCS-01 is a flexible capacitive sensor specifically designed for smart pillows. It can accurately detect the position of the head and is widely used in smart pillow applications. It is particularly suitable for pressure detection and measurement on flexible curved surfaces.

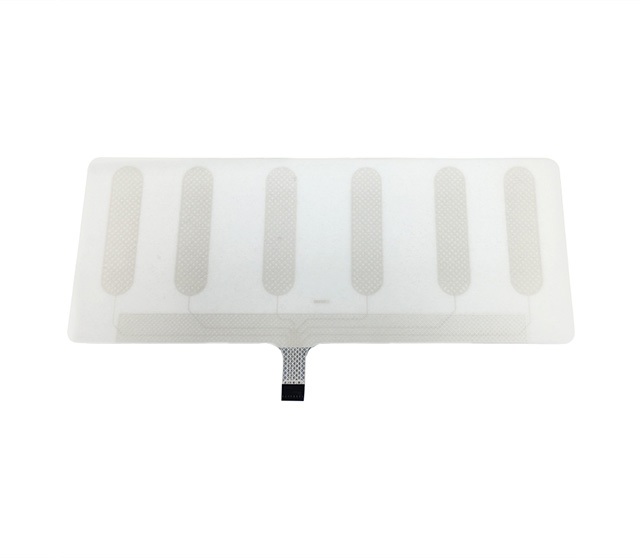

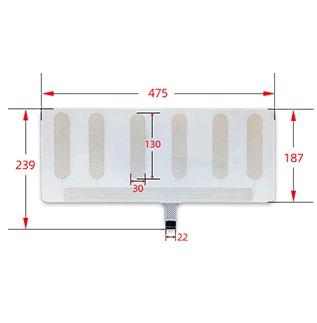

| Parameter | Size（mm） | |
| Overall Length | 475 | |
| Overall Width | 239 | |
| Sensing area（single ） | Length | 130 |
| Width | 30 | |
| Pin Pitch | 2.54 | |
| Tolerance | 0.2 | |
Ultra-thin design: thickness < 0.6mm (excluding adhesive)
Flexible and bend-resistant
Fast response time
Long lifespan: tested for over 1 million presses
Easy-to-detect output signal
Customizable length, pin configuration, and packaging
Supports both multi-point touch and single-point detection
Connector Type: Single-row DuPont female terminal (with housing), 2.54mm pitch, 8-pin
Pin Definition:
| Pin No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Signal | GND | Zone 1 | Zone 2 | Zone 3 | Zone 4 | Zone 5 | Zone 6 | GND |
Note: “GND” refers to the common ground terminal.

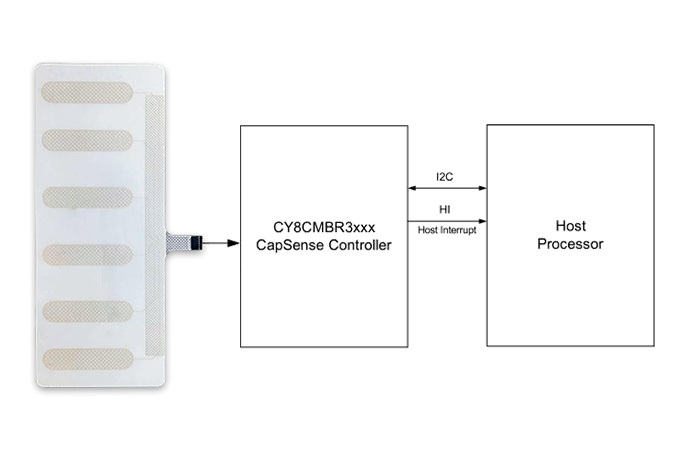

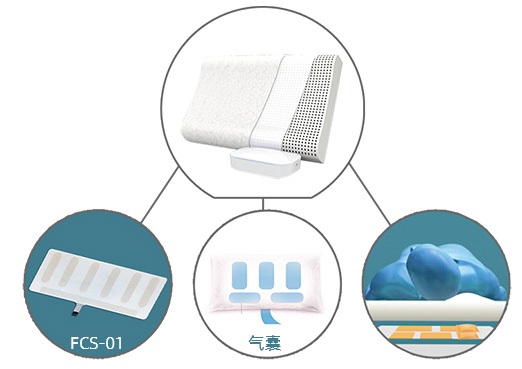

Recommended detection solution: CY8CMBR31166. Typical Applications
Sensor / Air bags set /Air bags inflation & deflation / To adjust user’s head position
